How the Hydrogen Generator Works

Our PEM Hydrogen Generator Kit introduces a small, precisely controlled amount of hydrogen and oxygen gas (HHO) directly into your engine's air intake system. This revolutionary process ensures a more complete and efficient combustion of your vehicle's conventional fuel—be it diesel or gasoline—delivering substantial business advantages

01

On-Demand Hydrogen Generation (PEM Technology)

Our system uses the highly efficient PEM (Proton Exchange Membrane) water electrolysis technology. This process electrolyzes pure water to instantly generate clean hydrogen and oxygen without the need for corrosive chemicals or additives. The system operates with low power consumption (4V 15A), in contrast to conventional hydrogen generators.

02

Optimized Combustion

Hydrogen is an ideal combustion gas because its diffusivity is 12 times and its flame propagation speed is 8 times that of fuel. When a proper amount of hydrogen is introduced, it significantly improves the combustion efficiency of your fuel, especially during frequent starts, acceleration, and at low engine speeds (under 3000 RPM), where fuel consumption is typically maximized and combustion is insufficient.
03


Intelligent Microcomputer Control

The core of our system is our independently developed Microcomputer, which features a high-precision, low-energy consumption 7 nanometer chip. It continuously reads real-time engine data and utilizes a high-precision background algorithm to dynamically adjust the engine's injection time, ignition timing, and transmission shift time based on driving habits and the amount of hydrogen gas. This ensures the trace hydrogen ignites at the most accurate time, maximizing the engine's thermal efficiency and fuel combustion efficiency.


How Hydrogen Conversion Works


Input: Pure water

Inside the onboard reservoir, distilled water is supplied to a sealed electrolysis cell.

The PEM electrolysis process splits the water (H₂O) into its pure components — hydrogen (H₂) and oxygen (O₂) — using controlled electrical current.

Unlike older “HHO” or additive-based systems, PEM cells require no chemicals or electrolytes, making them clean, safe, and virtually maintenance-free.

Technical Detail:

  • Operates at low voltage (12–24 V DC)

  • Produces high-purity hydrogen gas on demand

  • No storage — hydrogen is created only when the engine is running

The generated hydrogen is fed through a precision control unit and introduced into the air intake manifold of the engine.

The small volume of hydrogen mixes with the incoming air–fuel mixture, acting as a combustion enhancer rather than a replacement for your fuel.

What Happens:

  • Hydrogen raises the flame propagation speed

  • Fuel droplets burn more completely

  • Less unburned carbon exits the exhaust

This process improves thermal efficiency and reduces fuel waste, resulting in noticeable gains in performance and mileage.

Engine Benefits:

✅ Smoother throttle response

✅ Reduced engine knocking

✅ Cleaner spark plugs and valves

During combustion, the enhanced air–fuel mix produces a hotter, more uniform flame, converting more of the fuel’s chemical energy into motion and less into waste heat or soot.

As a result:

  • Fuel savings: Up to 20–25 % in typical road use

  • Lower emissions: Noticeable reduction in CO₂, NOx, and DPM (Diesel Particulate Matter)

  • Cleaner engine internals: Hydrogen helps remove existing carbon buildup

  • Extended maintenance intervals: Cleaner combustion means fewer oil and filter changes

Environmental Impact:

Hydrogen-assisted combustion directly reduces soot and particulate emissions, helping vehicles meet stricter Australian and Euro emission standards without costly engine overhauls.

Every Hydro Auto Tech system includes an electronic controller that synchronises hydrogen production with engine activity:

  • Starts producing hydrogen only when the engine is on

  • Automatically adjusts output based on RPM or throttle load

  • Monitors temperature, water level, and electrical current

  • Engages safety cut-offs for overheating or dry-cell conditions

This ensures consistent, safe operation while maximising performance.

Because the hydrogen is generated directly from water and electricity already available from the alternator, the process adds only a minimal load on the electrical system.

Over time, the system pays for itself through reduced fuel consumption, lower emissions, and extended engine lifespan.

Key Benefits of the Hydrogen Kits

Significant Fuel Economy Improvement

Reduced fuel expenses translate directly into lower operational costs and a better bottom line for your fleet or your everyday drive.

Reduced Maintenance Costs

Deeply removes existing carbon deposits and prevents new build-up by promoting full fuel combustion.

Smooth Operation

Eliminates gear shifts and setbacks for a superior, more efficient driving experience for commercial drivers.

Increased Power and Performance

Overcome common engine issues like slow speed-up or "roaring weakly" with a strong sense of frustration/hysteresis. Improves vehicle responsiveness for better on-road efficiency.

Lower Emissions & Environmental Compliance

Protect the environment and stay ahead of emissions regulations by effectively reducing the output of harmful exhaust substances.

Safe & Reliable Installation

Non destructive addition to the vehicle, easy to install and configure.

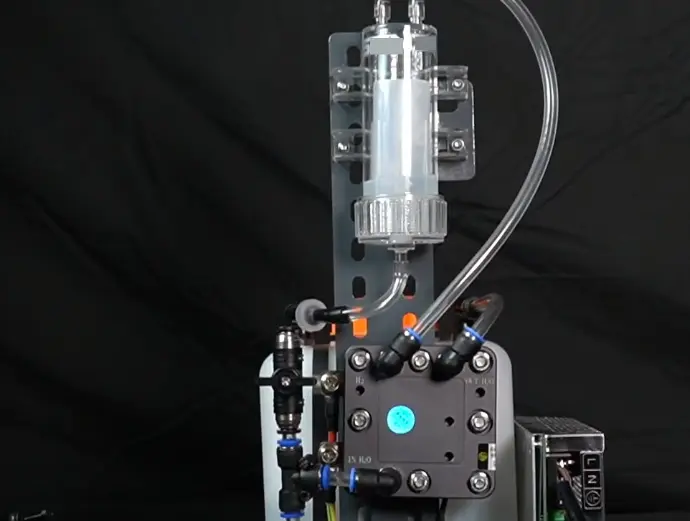

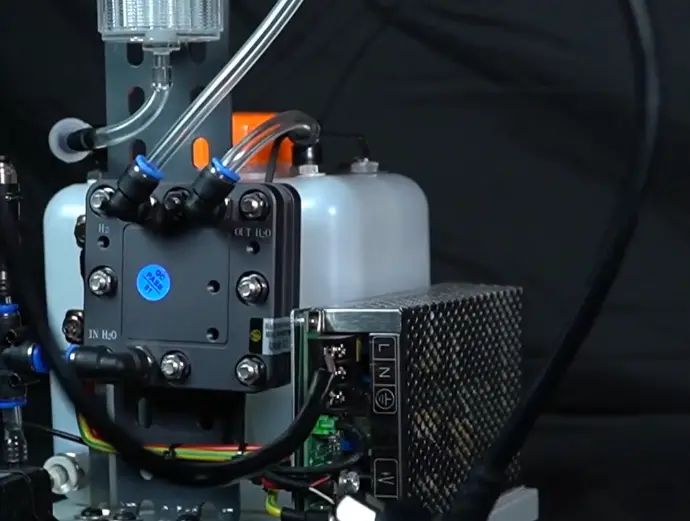

PEM (Proton Exchange Membrane) HHO generators

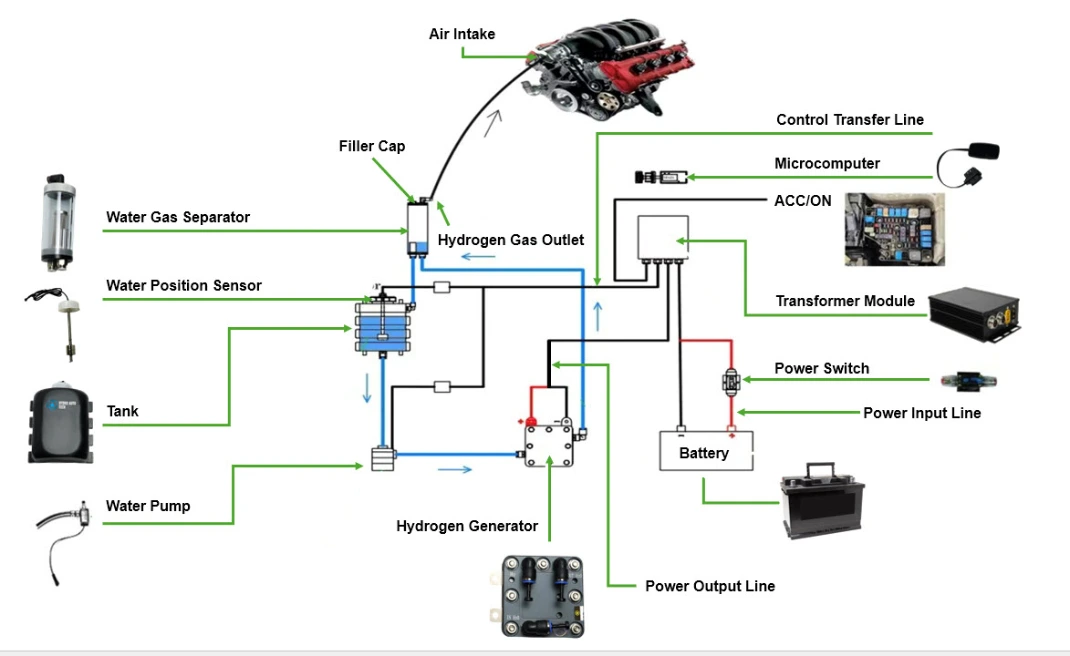

How it's installed in your engine



Hydrogen GeneratorMicrocomputerTransformer ModelWater Tank and Water Position SensorWater Gas Separator

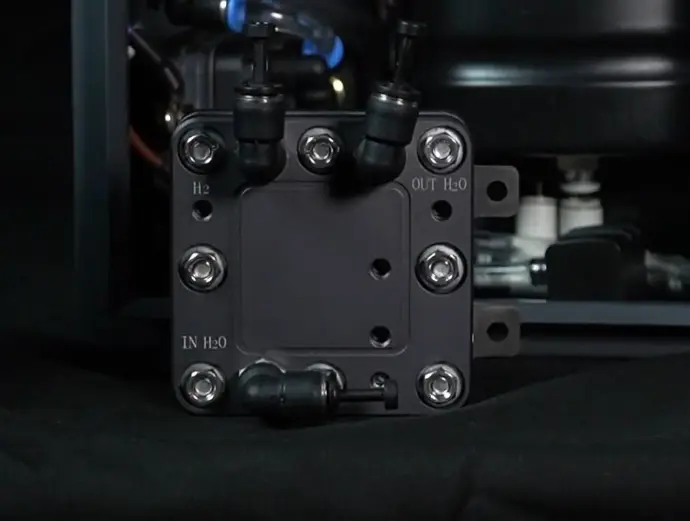

Hydrogen Generator

Electrolyze purified water to realize the function of low-power operation and generation of hydrogen and oxygen.




Microcomputer

Maximize the fuel efficiency of the engine.

According to the driver's driving habits and the amount of hydrogen gas, timely adjustment are made for the engine ignition and transmission shift time.

Adopts 7 nanometer chip imported from the United States, high precision, good performance, low energy consumption and fast speed.


Transformer Model

Reduce the voltage of the automobile battery to 4V, output it to the resolver for use.

Fireproof and high-temperature resistant material. The electronic components inside can withstand the high temperature of 105 ℃




Water Tank and Water Position Sensor

Storage tank for adding pure water and filter water vapour and sensor to measure the level of water.




Water Gas Separator

Separate water vapor from gas and assists clean hydrogen to enter the engine air intake.

COST SAVINGS

Save money on fuel and Maintenance costs due to a cleaner burn

REDUCED EMISSIONS

Significant reduction in emissions due to using less fuel

20%

Fuel Saving (Approx)

50%

Emissions Reduction

Top questions answered

In this section, we answer some of your common questions.


Our kits suit all vehicles makes and model as long as the on board computer allows for additional components.

No, our hydrogen generator kits are not pressurized units therefore this modification does not require compliance plates.

We all drive our vehicles differently and in some cases of city driving you might get slightly less fuel saving to highway driving, but overall, you will see improved fuel efficiency.
